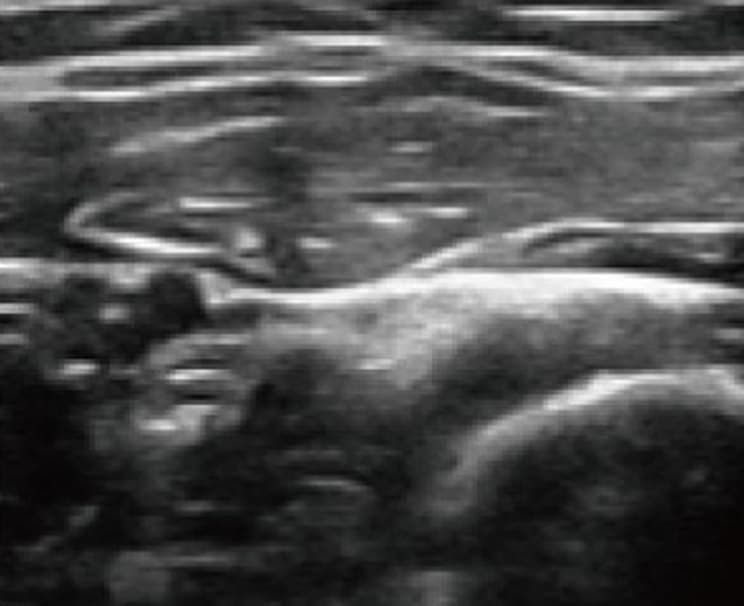

9:41MSK
MSK and soft tissue
Look for joint fluid, tendon changes and soft tissue lumps.
Sounding is BelievingWhatsApp +60 11-5938 6892
192 element portable handheld ultrasound
Scan in the room. Answer on the spot. Keep your patient.
The Centrate HD192 puts convex, linear and cardiac imaging in one probe that runs on the phone or tablet you already own. No trolley. No subscription.
Built for the clinic day, not the imaging suite.
In general practice a quick question comes up between patients. Gallstone or not. Fluid in the knee or not. A pregnancy in the uterus or not.
A referral turns a thirty second question into days of waiting. The HD192 puts the answer in the consult room, while the patient is still sitting there.
In a Danish study of GPs who use ultrasound, about 3 in 4 scans were focused yes or no questions. Jensen et al., Annals of Family Medicine, 2022.
Answer the quick question without sending the patient away.
Scan a range of everyday concerns right in the consult room. No waiting for outside imaging, and no moving the patient to another room.

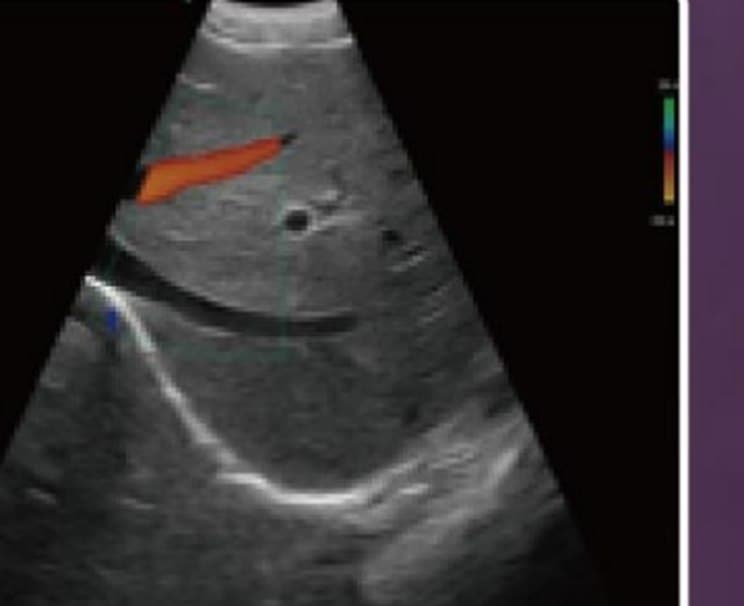

9:41ABDOMEN
Abdomen
Check the gallbladder, liver and kidneys for stones and fluid.
9:41OB
Early pregnancy
Confirm the pregnancy is in the uterus and estimate the dates.

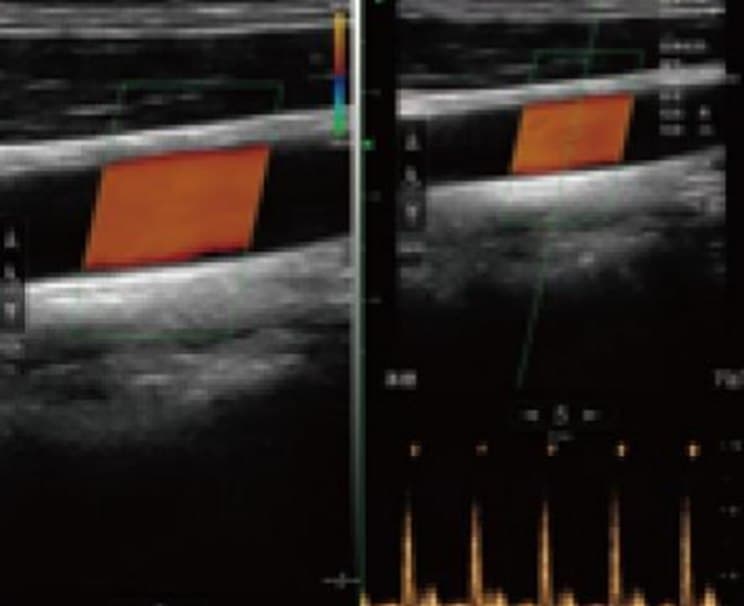

9:41VASCULAR
Thyroid and vessels
Check thyroid nodules, carotid flow and leg veins.
Captures supplied by the manufacturer. Phone frame is illustrative.
Meet the HD192
Both heads are the good head.
Many handhelds publish one headline element count. The HD192 carries 192 elements and 64 channels on the convex head and on the linear head, so superficial work is as sharp as deep work.
3 in 1convex, linear, cardiac
192 / 192elements per head
262 gfits a coat pocket
RM 0software fees
Take it with you
The HD192 brochure
Four pages you can read in five minutes. Scans, specs and what comes with it.
Download the brochureRun your own numbers
What could one extra scan a day be worth?
Put in your own scan volume and fee and see what it adds up to.
Open the calculatorExtra scans a day1
Fee per scanRM80
Extra a monthRM2,080
Get the brochure
Fill this in and the download unlocks straight away.
Why Centrate for general practice
A clinic needs the answer now. Centrate gives it in the room.
Together, the probe and the free app help you:
- Answer quick questions without a referral
- Cover abdomen, MSK, thyroid and more with one probe
- Scan in any room, at the bedside or on a home visit
- Rinse and disinfect between patients with an IP68 body
- Skip the yearly software fee for good
Fast. Portable. Priced for a clinic.

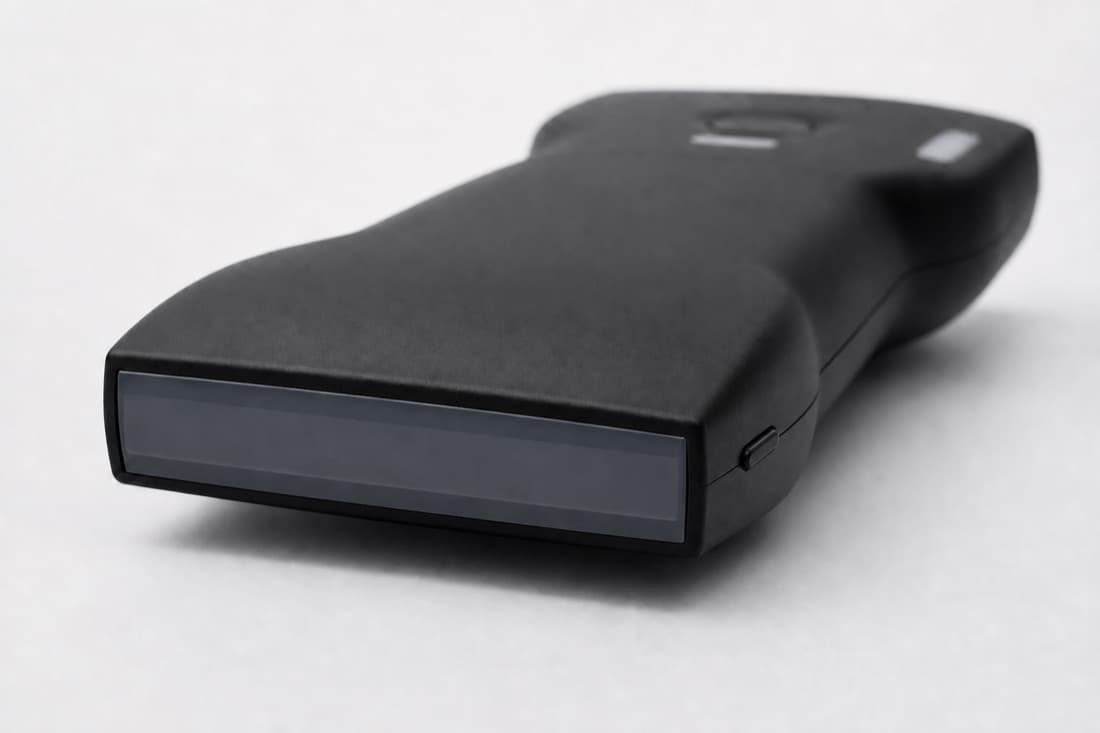

The HD192 probe
One dual head probe with convex, linear and cardiac imaging, 192 elements on each head.
No switching probes. No waiting on a cart. IP68, wireless charging, about three hours of scanning.
Explore the specs9:41MY USG
The MY USG app
Free on the App Store and Google Play. Free updates, no subscription.
- 14 or more presets, from MSK to thyroid
- Side by side screens to compare two modes
- Measure, annotate, then save as JPEG, MP4 or DICOM
Real captures from the system
One probe. Three arrays. Tap through them.
Switch array to see what each head is built for, then tap any frame to bring it up.
MusculoskeletalDepth 20 to 100 mm
- Array
- Linear, L45 footprint
- Frequency
- 7.5 and 10 MHz
- Depth
- 20 to 100 mm
- Built for
- Tendon, nerve, vessel, thyroid and small parts
Captures supplied by the manufacturer for this system. Image quality in use depends on patient, preset and operator.
Captures supplied by the manufacturer. Image quality in use depends on the patient, the preset and the operator.
Annals of Family Medicine, 2022About 3 in 4GP ultrasound scans were focused yes or no questions, not full studies.
The Ultrasound Journal, 2019Gallstones and DVTIn published GP studies, ultrasound found gallstones with 88.9% sensitivity and DVT with 90%. Results depend on training.
WONCA Europe position paperTrain firstRecommends that GPs receive POCUS training matched to their practice.
Run your own numbers
What could one extra scan a day be worth?
Change the figures to match your clinic.
Extra revenue a monthRM 2,080
This is revenue, not profit, and your own figures will differ. Typical private clinic fees in Malaysia run about RM80 to 150 for a basic abdominal scan and RM28 to 53 for an early pregnancy scan.
Specifications
Imaging
- Configuration
- 3 in 1 dual head: convex, linear, cardiac
- Elements
- Dual 192, 64 channels each
- Convex
- 3.5 / 5 MHz, 90 to 305 mm, R60
- Linear
- 7.5 / 10 MHz, 20 to 100 mm, L45
- Cardiac
- 2.5 / 5 MHz, 90 to 200 mm
- Modes
- B, 2B, B+M, Colour, PW, PDI, B+Colour+PW
- Presets
- 14 or more, including MSK, nerve, vascular, thyroid, abdomen, OB/GYN, cardiac, lung
Hardware and connection
- Size
- 160 × 65 × 18 mm
- Weight
- 262 g
- Water resistance
- IP68
- Battery
- 2800 mAh, about 3 h scanning, 48 h standby
- Charging
- Wireless, 2 to 3 h
- Connection
- WiFi 802.11n 2.4 / 5 GHz, plus USB
- Works with
- Android 14+, iPhone and iPad iOS 11+ by WiFi, Windows 10 PC
- Saves as
- JPEG, MP4, DICOM
- Certified
- FDA, CE, ISO, TGA (listed by the manufacturer)
Frequently asked questions
Is there a subscription or yearly software fee?
No. The MY USG app and every future update are free. There is no per seat licence and no cloud fee.
What do I need to run it?
A phone, tablet or PC. It works with Android 14 and later, iPhone and iPad on iOS 11 and later (by WiFi), and Windows 10. We can also supply a tablet that is set up and paired, quoted separately.
Is ultrasound difficult to learn?
Basic point of care scans can be learned, and published guidance for GPs recommends training matched to your practice. We bring a unit to your clinic, scan live, and put it in your hands so you can judge for yourself.
How does it compare with a cart machine?
A cart is built for the full study and is still the better tool for deep abdominal work. The HD192 is for the quick question that is not worth moving a patient for. Many clinics use both.
Can my nurse use it?
Yes, with training. We recommend that a doctor reviews the images.
Can I charge for ultrasound scans?
Many private clinics in Malaysia already offer ultrasound scans as a paid service. We do not give regulatory advice, so please confirm your scope of practice with your professional body.
What if it needs repair?
Warranty, repair and support terms are given in writing with your quotation, so the service position is clear before you buy.
See it on your own patient.
We bring a unit to your clinic, scan live and hand it to you. Fifteen to twenty minutes, with no commitment.
